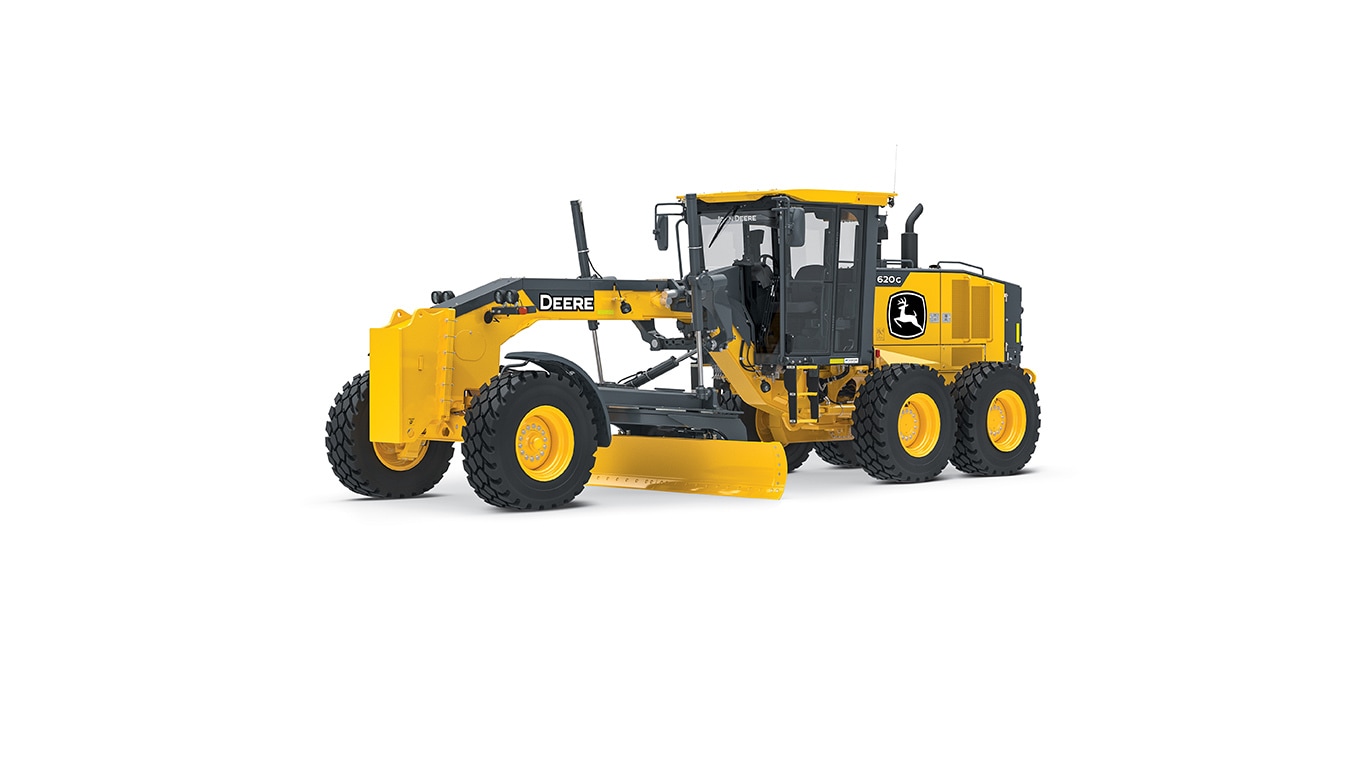

620G
Motoniveladora
- Potencia neta del motor: 108–149 kW (145–200 CV)
- Par motor neto máximo: 915 Nm (675 lb.-ft.)
- Fuerza de Arrastre de la Hoja: 14 091 kg (31,066 lb.)
- Aumento neto del par motor: 46%
Especificaciones
CARDAN
| Motor - marca |
John Deere |
|
|
|
| Motor - modelo |
PowerTech Plus 6.8L |
|
|
|
| Numero de cilindros |
6 |
|
|
|
| Desplazamiento, ltr (Inches³) |
6.8 (414) |
|
|
|
| Potencia, kW (hp) |
149 (200) |
|
|
|
| Peak Engine Torque, Nm (lbf / ft) |
915 (682) |
|
|
|
| Torque Rise, % |
37 |
|
|
|
| Net Power - Gear 1, kW (hp) |
112 (150) |
|
|
|
| Net Power - Gear 2, kW (hp) |
123 (165) |
|
|
|
| Net Power - Gear 3, kW (hp) |
130 (175) |
|
|
|
| Net Power - Gear 4, kW (hp) |
134 (180) |
|
|
|
| Net Power - Gear 5, kW (hp) |
142 (190) |
|
|
|
| Net Power - Gear 6, kW (hp) |
146 (195) |
|
|
|
| Net Power - Gear 7, kW (hp) |
149 (200) |
|
|
|
| Net Power - Gear 8, kW (hp) |
149 (200) |
|
|
|
| Transmision - marca |
John Deere |
|
|
|
| Number Of Speeds - Forward |
8 |
|
|
|
| Number Of Speeds - Reverse |
8 |
|
|
|
| Front Wheel Drive |
No |
|
|
|
| Axle Oscillation, ± Degrees |
32 |
|
|
|
| Front Wheel Lean, ± Degrees |
20 |
|
|
|
| Frenos de servicio - tipo |
Multiple Wet Discs |
|
|
|
| Frenos de servicio - activación |
Hydraulic |
|
|
|
DIMENSIONES
| Longitud total, mm (ft/in) |
8890 (29 ft 2 in) |
|
|
|
| Altura de la cabina con ROPS, mm (ft/in) |
3180 (10 ft 5 in) |
|
|
|
| Transport Width, mm (inches) |
2490 (98) |
|
|
|
| Distancia entre ejes, mm (ft/in) |
6160 (20 ft 3 in) |
|
|
|
| Bladebase, mm (ft/in) |
2570 (8 ft 5 in) |
|
|
|
| Moldboard Sideshift - Right, mm (inches) |
683 (26.9) |
|
|
|
| Moldboard Sideshift - Left, mm (inches) |
683 (26.9) |
|
|
|
| Shoulder Reach - Right, mm (ft/in) |
2083 (6 ft 10 in) |
|
|
|
| Shoulder Reach - Left, mm (ft/in) |
2083 (6 ft 10 in) |
|
|
|
| Circle Rotation, Degrees |
360 |
|
|
|
| Turning Radius - Minimum, m (ft/in) |
7.21 (23 ft 8 in) |
|
|
|
| Frame Articulation, ± Degrees |
22 |
|
|
|
PESOS
| Operating Weight, kg (lbs) |
14904 (32857) |
|
|
|
| Weight With Push Block & Ripper, kg (lbs) |
17535 (38658) |
|
|
|
| Máximo peso de la máquina, kg (lbs) |
22680 (50000) |
|
|
|
Las especificaciones se basan en la información publicada en el momento de la publicación. Las especificaciones están sujetas a cambios sin previo aviso. La configuración real de la máquina puede ser distinta a la imagen. No todos los modelos están disponibles en todos los países.
